IntelliCAL CDC401 Field 4-Poles Graphite Conductivity Cell, 10 m Cable
Non-returnable
NGN2,215,968.30

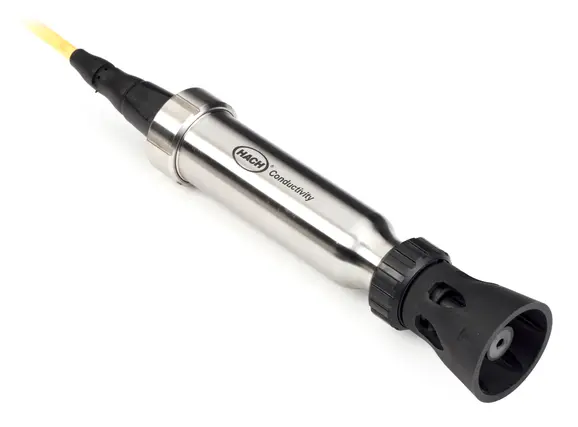

IntelliCALⓇ CDC401 is a digital, graphite, 4-pole conductivity cell with a temperature sensor. This Rugged CDC401 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the CDC401 rugged models specially designed for field use. CDC401 Rugged is available with a 5, 10, 15, or 30 meters cable. The CDC401 Rugged is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
Choose Quantity
Product Details
Technical Attributes
| Accuracy | Cond: ±0.5% of reading|TDS: ±0.5% ±1 digit|Salinity: ±0.1, ±1 digit |
| Cable Length | 10 m (32.81 ft) |
| Electrode Type | Conductivity Cell; 4 Poles - Graphite |
| Kit? | No |
| Length | 223 mm (8.73 in.) |
| Method Type | Field: 4 Poles - Graphite |
| Parameter | Conductivity |
| Probe Type | Rugged |
| Product Kit | Model: CDC401 Accessories Included: None |
| Range | Conductivity: 0.0 µS/cm - 200 mS/cm TDS: 0.00 mg/L - 50.0 g/L as NaCl Salinity: 0 - 42 ppt or ‰ Resistivity: 2.5 Ωcm - 49 MΩcm |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 45 mm (1.77 in.) |
| Sensor material | Noryl / Stainless Steel |
| Sensor Type | 4-poles conductivity probe, Graphite, k = 0.40 cm-1 |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | -10 - 110 °C (14 - 230 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: Conductivity Minimum Sample Depth (mm): 45 |
| Thermistor | ATC |
| Warranty | 12 months |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
| Weight | 1.1 kg |
| What's included? | IntelliCAL CDC401 Rugged Conductivity Cell, 10 m cable, protective shroud kit, Test certificate, and Basic User Manual. |
