IntelliCAL PHC101 Laboratory Low Maintenance Gel Filled pH Electrode, 1 m Cable
Non-returnable
NGN798,694.65

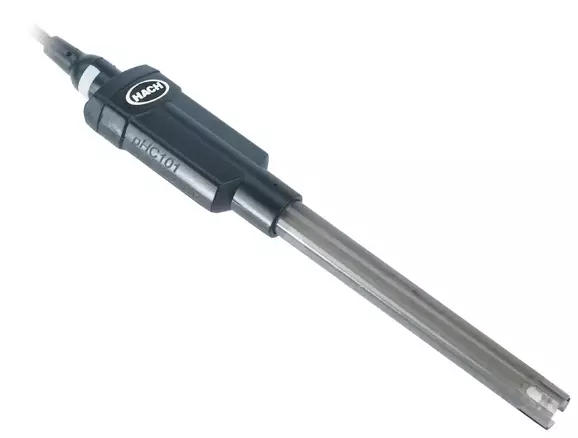

IntelliCALⓇ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. The laboratory version of this pH electrode is shockproof with its epoxy plastic body protecting down to the glass bulb sensing element. The Electrode is available with a 3 or 1 m cable. The PHC101 electrode is ideal for measuring pH in wastewater, drinking water and general aqueous applications. The PHC101 is not suitable for use with organic solvents or samples with pH less than 2.
Choose Quantity
Product Details
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Clean & Dirty Samples |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Open Junction |
| Kit? | No |
| Length | 175 mm (6.89 in.) |
| Method Type | Field: Non-Refillable Gel Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC101 Accessories Included: None |
| Range | 2 - 14 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 20 mm (0.79 in.) |
| Sensor material | Epoxy |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 20 |
| Thermistor | ATC |
| Warranty | 6 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC101 Laboratory pH electrode with storage soaker bottle, 1 m cable, Test certificate, and Basic User Manual. |
